The most easy, fastest and
simple to install Bow Thruster!
Small Bow Jet Thruster:
- Designed for shallow draft boats up to 28ft
- Suitable as Bow or Stern Thruster
- 12V Battery powered motor
- No tunnel required, no epoxy work!
- Easy Installation (Best system for DIY)
- Very small nozzles
- Safe for gasoline engine areas
- Composite, corrosion resistant parts
- Complete package: Ready for Install
Great product for small boats!
Many advantages over traditional (tunnel) thrusters
| Jet Thruster Micro | Traditional tunnel thruster |
|---|---|
| Flexible installion | fixed position |
| Works for shallow draft boats | Prop must be well down water line |
| Very silent operation | Very loud |
| Standard safe for gasoline engine areas | Standard NOT IP protected |
| Great for DIY (Save Money!) | Not DIY suitable |
| Works great and easy for any hull type | Complex / expensive fiberglass work |
| Small nozzles (Better fuel economy) | Large visible hole in bow |
| Low costs due to fast install | High costs due / long install time |
Video: Real V8 engine sound + Real Jet Thruster Micro sound
Hi Safety Standard!
- Fully enclosed IP protection for safe use in Gasoline engine areas
- No moving parts under the water line, safe product for rescue boats
- Swimmers / animals cannot get hurt by a propellor
- Water inlet protected with a filter (No risk of sucking in a line / plastic / debris
- Valve open/close - Temperature - Water leak sensors present
- Injection moulded from Polyamid Marine grade composites
- Pump equipped with a open/close valve to shut off the water flow into the pump
- Water proof design
- Compact high quality 12V DC motor
Who can install this
product to my boat?
ANY boat yard technician or skilled DIY person can install this unit in a very short period of time. This unique Bow Thruster does not require labour intensive, complex Epoxy work. Simply place the pump over the inlet hole, tighten the inlet and connect the hoses. Drill holes for the nozzles and the flanges will cover the hole. Simple, Secure and Easy!
We have developed Jet Thruster Micro keeping in mind Boat builders, yards and DIY people can easily install a Bow Jet Thruster without the trouble and know-how of Fiberflass / epoxy
All electrical connections are prepared, and due to the high quality Auto-motive connectors Plug & Play
Are you keen on working on your own boat?
Save money: Easy DIY installation!
We have developed the Jet Thruster Micro with DIY install in the back of our minds. It's truly easy to install this Thruster because NO Fiberglass work is required. Simply drill the inlet and nozzle holes with the provided drill set, and fix the thru-hulls in place. Obviously our extensive installation manual will guide you thru the process.
Where installing a Tunnel Thruster is a delicate work, where knowledge of Epoxy resin, fiberglass, Gelcoat and Antifouling is part of the work. With a Jet Thruster Micro you avoid that. The flanges will cover the boreholes.
No need to work with the fiberglass Epoxy chemicals. Installing the Jet Thruster Micro comes down to basic fitting.
After the inlet and nozzles are in place, it will look like the Jet Thruster was factory installed to your boat!
Installing a Jet Thruster Micro is a great winter project. We can promise, your friends and boating community will be very interested to see what you are up to! When the summers is there, you can dock like a Pro!
Ready for install
- Designed and built with over a decade Jet Thruster knowledge
- Clear Installation instructions
- Most silent thruster on the market
- Suitable for shallow draft boats
- Great DIY product. Designed for DIY Installation!
- OEM / boat builder packages available
IP protected
Safe product for Gasoline Engine Areas!
Jet Thruster Micro is fully ignition protected (ISO 8846) for use in boats with petrol engines. It has a hermetically sealed ultra-strong ABS housing around all electric parts.
This ABS cover provides the ignition protection as no petrol fumes can enter & be ignited by sparks. The other advantage is that the electric parts that could be damaged by water are also covered & protected, making this thruster the ideal choice as it always will remain dry.
This new Ignition Protected Jet Thruster Micro is the perfect fit smaller gas engine boats
Very small pump unit
- With a 12" footprint only, the pump will fit to the smallest boats
- Complete Power unit
- Open / Close valve present with open-close sensors
- IP Cover Pre-Installed
- All Stainless fasteners
- Battery Cable and Terminals + rubber caps pre-assembled
- Made from Marine Grade PA6-Glass Composite
Ready to install right out of the box!

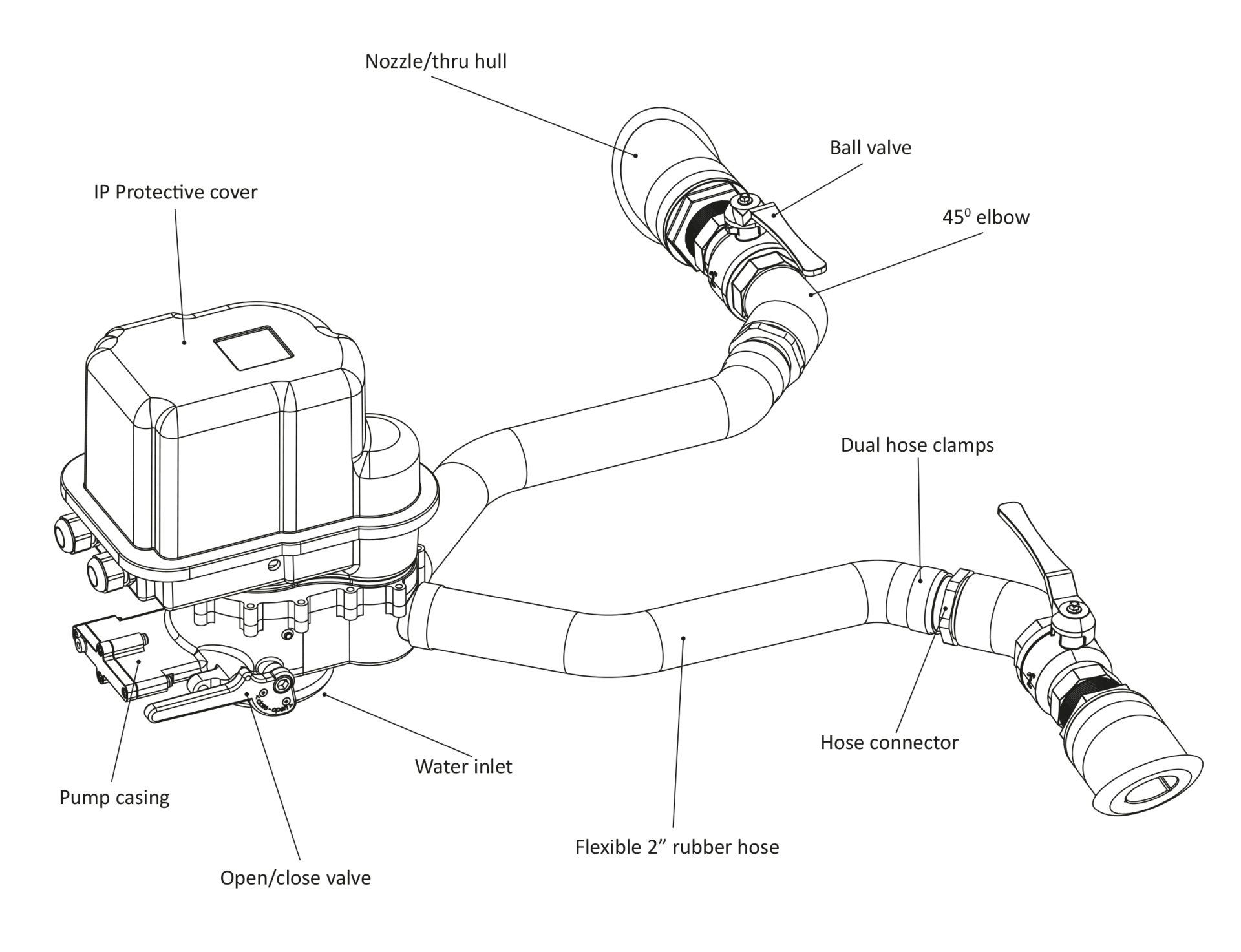

Jet Thruster Micro - Function
Expelling a volume of water results in a thrust force
The Jet principale of a Jet Thruster Micro is quite easy:
- Water intake into pump directly from underneath the hull
- Impeller will push water to the diverter valve inside the pump
- Joystick selects direction of flow
- Water will flow from pump towards the nozzles
- Flexible hose and high quality parts are flexible to install
- Nozzles are placed maximum forward in the hull
- Water will exit the nozzle at a given velocity
- Boat wil smoothly move into opposite direction
Shallow draft boat? No problem!
Easy electrical setup
- Easy installation, works with high quality Automotive sealed connectors
- Water proof connectors connect the joystick controls to the pump unit
- Illuminated on/off button
- Clear RGB LED function indicator
- Water proof - Aluminum anodized front - high quality UV resistant
- Comfortable joystick and Remote Control
REMOTE CONTROL INCLUDED!
We have standard added a Remote control receiver and include 2x transmitters!
When tying the boat to a cleat, have full control. The wind will easily make your boat drift away. No more reaching out to a railing, just bring the boat back in with a push on the button! We will provide two transmitters.
We Ship anywhere!
The world is a global market. Our preferred shipping partner FedEx will deliver the Jet Thruster Micro to your doorstep, anywhere! You can expect a box with size 80x60x52cm and it will ship from our warehouse in The Netherlands
We offer this product and shipping from our full service Estore. Obviously our team welcomes any question you might have!
Si-Barone Charter - Dordrecht
"Our Boat Tour Company Si-Barone in Dordrecht, The Netherlands is using a Jet Thruster Micro to Navigate our Beautiful Riva Ariston thru the historic city channels. We need full control over the boat and avoid issues and damage whilst performing difficult maneuvers. It's a challenge to navigate Classic boats in position with a single prop, like in this picture on the left where we are hosting a wedding.
Our captains rely on the Jet Thruster to assist them during the close quarter maneuvers they need to make on daily basis."
Sirio Barone, owner of Si-Barone
Looking for more technical details?
You can download the dedicated instruction and user guide and learn more about the Unique Jet Thruster Micro, The World First and smallest In board thruster system for all small boats!
Download the Brochure!
You can download the dedicated Jet Thruster Micro Brochure and learn more about the Unique Jet Thruster Micro, The World First and smallest In-board thruster system for all small boats!
Download the Press Release
Fee free to download and publish about the All New Jet Thruster Micro on your (social) media platforms / channels!
The Various Images button enables you to download a Zipped folder with a selection of 40 Jet Thruster Micro related images, suitable for use on social media, and other purposes.
3D files for OEM / Boat builder
Need to implement Jet Thruster Micro to your Solid Works / Rhino / Autocad project?
3D engineering files can be requested to optimize your design!
8.5m Rescue sloop
A Jet Thruster Micro works great as Retrofit Thruster system for Rescue Sloops
